Bundle1:?3GB+16GB AIO-3399ProC Base
Bundle2:?6GB+16GB AIO-3399ProC Base
?

?AIO-3399ProC??

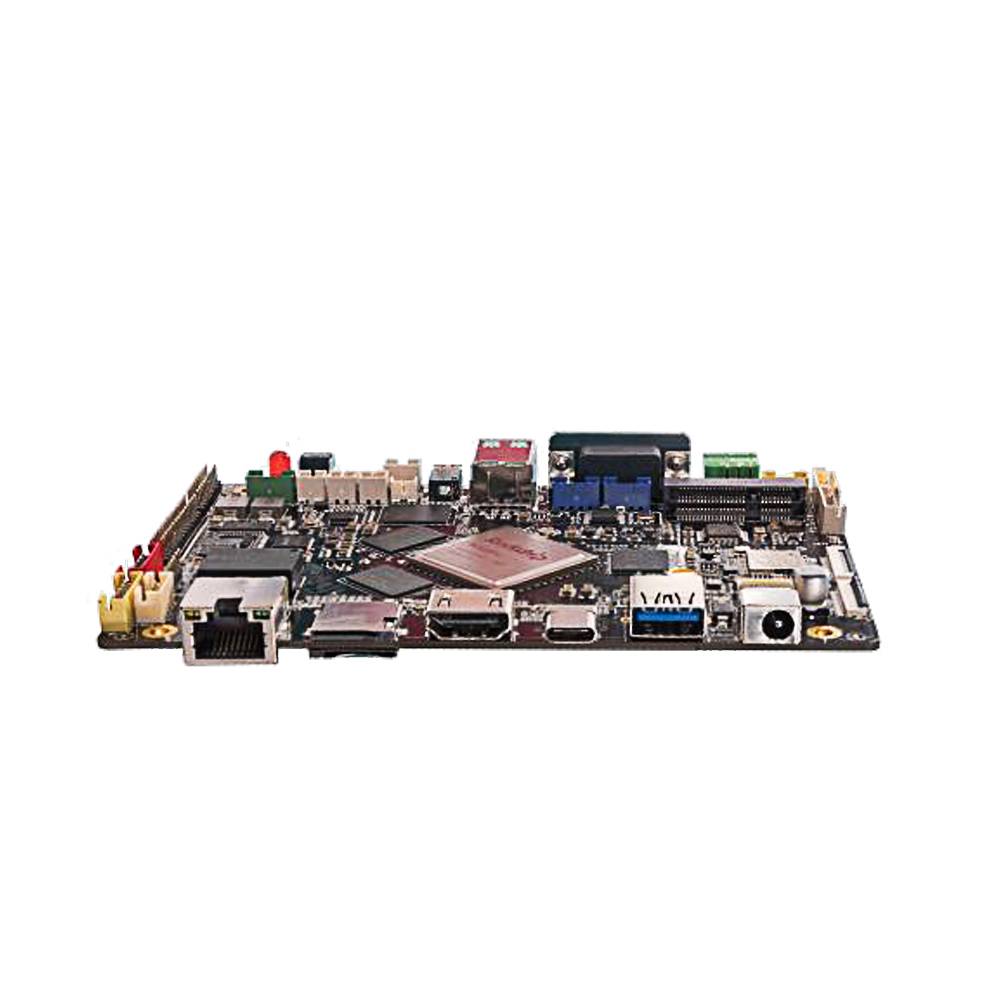

Six-core High-performance AI Main Board
It runs on Rockchip RK3399Pro high-performance AI processor with built-in neural network unit (NPU), supports multiple AI development tools and interfaces, and has rich expansion interfaces and powerful hardware encoding and decoding abilities, which can be applied to the AI industry easily.

RK3399Pro Six-core High-performance Processor
Rockchip RK3399Pro processor adopts the architecture of dual-core Cortex-A72 and quad-core Cortex-A53 with a frequency up to 1.8GHz, showing an ultra-strong general-purpose computing performance. Quad-core ARM high-end GPU Mali-T860 integrates more bandwidth compression techniques and therefore has an excellent overall performance.

NPU With ultra-strong AI Performace
AIO-3399ProC can directly adopt TensorFlow/Caffe/Mxnet general-purpose model and provides AI development tools like model transformation and end-to-side API. It also supports the development interfaces of Android NN API, RKNN cross-platform API and TensorFlow.

Powerful Hardware Decoding Capability
It supports various display and output interfaces including HDMI 2.0, MIPI-DSI, eDP and dual LVDS. It also supports dual-screen identical display/dual-screen differential display, showing powerful hardware encoding and decoding abilities. Besides, and supports 4K VP9, 4K 10bits H265/H264, 1080P multi-format (VC-1, MPEG-1/2/4, VP8) video decoding and 1080P (H.264/VP8 format) video encoding.

Highly-efficient and Stable Hardware
It supports CAN bus data communications with highly efficient real-time, farther transmission distance, and stronger anti-electromagnetic interference ability. It configures an independent external hardware watchdog and makes the device work continuously in the unmanned state which better promotes the system’s stability.

Support Dual MIPI Cameras
With dual MIPI CSI interfaces and in-built dual ISP, supporting single 13 Mpixel or dual 8Mpixel at the maximum. It can achieve the simultaneous input of dual-camera data and supports high-level processing like gesture detection, deep detection, and 3D.

Support Multiple OS
With stable and reliable performance, AIO-3399ProC supports multiple operating systems including Android, Linux+QT and Ubuntu.

Rich Expansion Interfaces
On-board I2C, SPI, UART, ADC, PWM, GPIO, PCIe, USB3.0, RS232, RS485, I2S (supporting 8-way digital microphone array input ) and other interfaces. It supports the power supply mode of POE+ (802.3 AT, 30W output power ).

Various Product Forms
AIO-3399ProC can be equipped with an industrial metal case and a 10.1-inch IPS HD multi-point touching screen which is integrated into a high-performance application PC. It can also be equipped with industrial cases independently and embedded into all kinds of smart devices flexibly.

Application
AI driving monitoring, industrial computing, AI servers, Self-service retail shelves, face-scanning payment devices, face recognition devices, smart vending counters, and smart education.
