youyeetoo X1/X1s
4K X86 Single board computer – N5105 / N5095- Windows Linux Server
- Quick Start:https://wiki.youyeetoo.com/en/x1
- Certificate: FCC/CE/RoHS
- FAQ: WIKI#FAQ
- Tech Forum: Feedback
- Social Media:
Learn more about X1 tutorials and accessories.

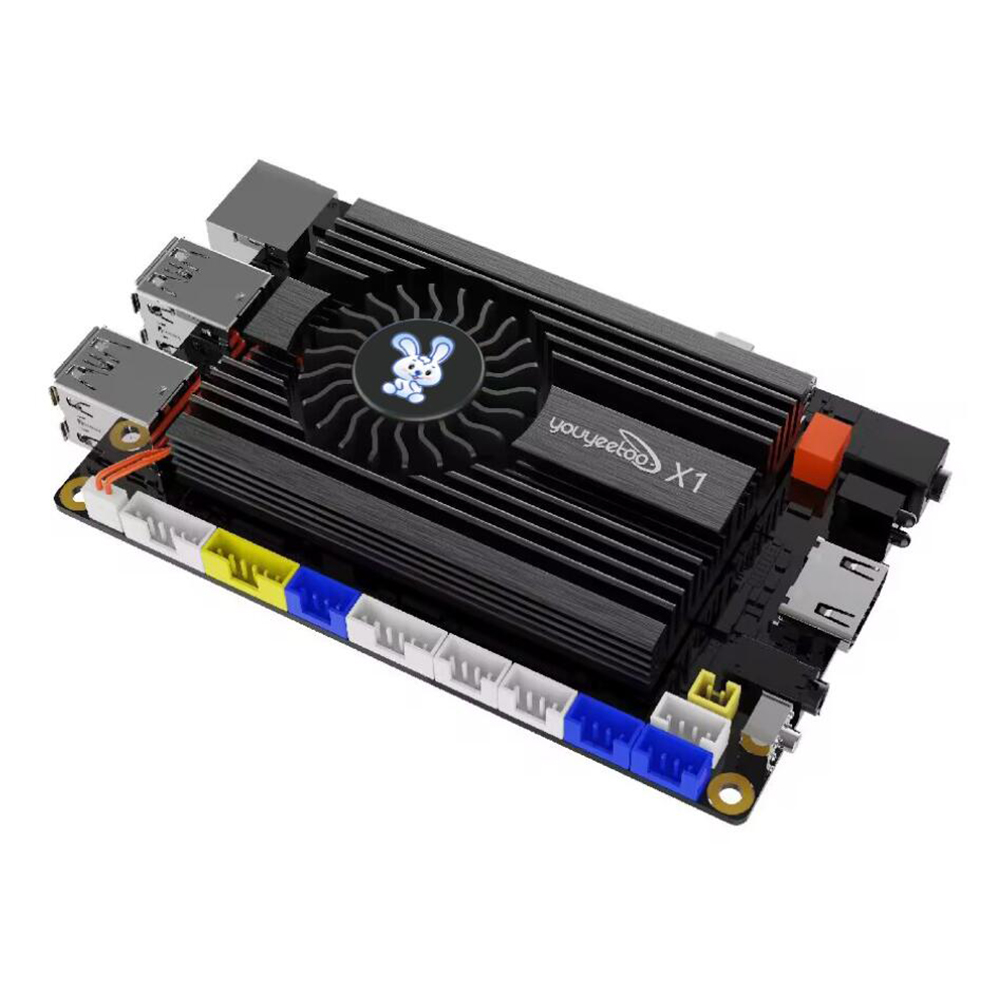

Introduction
The youyeetoo X1 is a single-board computer with an 11th Gen 4 Core Intel Celeron N5105. The N5105 is a quad-core, quad-threaded SoC from the Jaser Lake family. four Tremont CPU cores are clocked between 2 and 2.9 GHz (single-core Burst). Uses 1.5 MB L2 and 4 MB L3 caches.
Multiple RAM and storage sizes are available, with support for M.2 extended wifi, 4G LTE, and SSD. The right configuration can be matched to your project needs.
Whether you are a DIY manufacturer, IoT developer, system integrator or solution provider, you can always find what you want.
Mainly for industrial, IoT, automation, robotics, and other industries.
Features
- CPU: 11th Gen 4 Core Intel Celeron N5105(Up to 2.9 GHz), 10nm, 10 TDP
- Graphics： Intel UHD Graphics
- RAM: Up to 16GB LPDDR4
- Storage: Support EMMC, TF Card, NVME SSD, SATA3.0.
- Video: Support Dual 4K HDR and 3-Way Video Output.
- Networking: 1 GbE LAN. , WIFI 5 + BT 5.0 / WIFI 6 + BT 5.2 / 4G LTE via M.2 2230 E key,
- Other: PoE, USB3.0x2, USB2.0x4, UART, GPIO, IIC, SPI, RTC, NFC
- Support Wake On LAN, Automatically start.
- OS: Linux, Windows 10 Pro / 11 Pro
- Size : 115mm x 75mm x 20 mm
Shipping Listing:
x1 youyeetoo X1 X86 Single board computer
x1 12V 3A DC Power
x1 Active Cooling Fan (Assembled)
Applications
Intel development board
Server
NAS Kit
Home Assistant

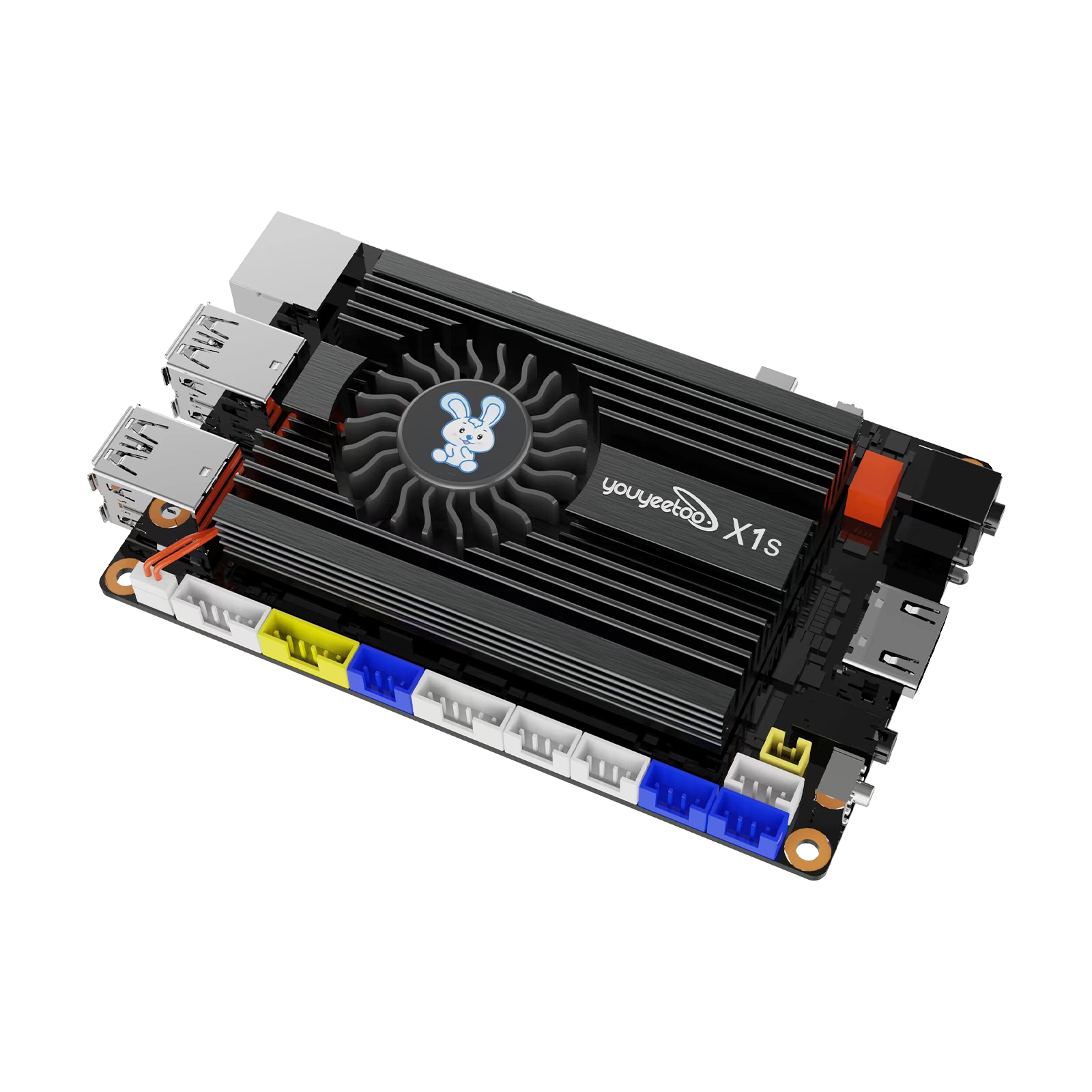

Comparison between X1 and X1s
Our Customized Services
The representative changes are listed below.
Customization service content:
Windows system customization
-System Tailoring and OEM Customization
Customize the Windows operating system according to the demand, remove unnecessary functions, improve performance, and modify OEM information according to the customer’s requirements to enhance the brand image.
BIOS Customization
-Customized boot animation
Provide a customized boot animation to enhance device personalization and brand image.
-Booting method customization
Provide keystroke startup or power-on startup options, and flexible selection of startup mode to meet the needs of different application scenarios.
-Audio Input Customization
Support analog MIC or digital MIC microphone input to enhance the audio interaction capability of the device, which is suitable for voice recognition and other applications.
-Display Interface Customization
Provide HDMI or HDMI+MIPI display interface to ensure a stable and clear visual effect, suitable for various display devices.
-GPIO voltage support customization
Provide 1.8V or 3.3V GPIO voltage support to ensure the compatibility of the device with various hardware peripherals.
-Other BIOS customization
Provide other BIOS customization services according to customer needs, such as special hardware support, boot parameter adjustment, etc., to fully meet the individual hardware requirements.
Why choose our customization service?
Efficient customization: Optimize system and hardware configurations to enhance device performance and compatibility according to your needs.
Flexible choices: Provide a variety of customization options to make your device more compatible with specific application scenarios.
Brand Enhancement: Enhance the sense of professionalism and brand image of your product through OEM customization and personalized boot-up animation.
Email:sales@szlanlong.com
